5.8. HTML Message Examples

Sending an HTML message is as simple as clicking the HTML Message button in the Email tab. For the Message Source you can choose a file or write HTML code directly into the text-entry box. Here are two examples of how you can embed data into an HTML messages, using an ASP source file

5.8.1. An HTML Message with Embedded Data Points

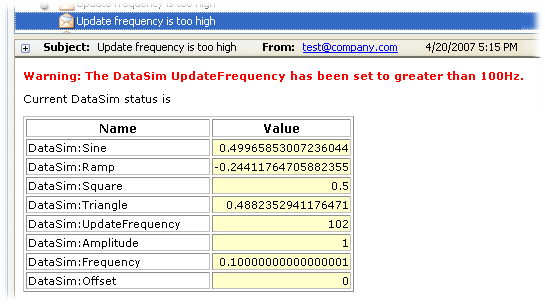

This is an example of an ASP file that embeds the latest data from DataHub points into an HTML table. The ASP file is named EmbedPoints.asp, and comes installed with the DataHub in the OPC DataHub/etc/ directory. If the DataHub is configured to send this file as the message body, and the DataSim's UpdateFrequency is changed to, say, 102, the DataHub will email a message like this:

Contents of the ASP File

The contents of the file EmbedPoints.asp are as follows:

<html>
<style>
BODY, P, TD{
background-color : White;
font-family :  Verdana, Geneva, Arial, Helvetica, sans-serif;
font-size : 8pt;
}
TH{
font-family:Verdana, Arial, Helvetica, sans-serif;
font-size: 9pt;
font-weight: bold;
background-color: #23cce6fe;
}
.highlight{background-color: #FFFFCC; text-align:right;}
.warning{color: #FF0000; font-weight: bold;}
</style>
<body>
<!--
	This is a simple example of an HTML template file which contains
  embedded point values from the DataHub.
 -->
<p></p>
<div class="warning">Warning: The DataSim UpdateFrequency has been
                     set to greater than 100Hz.</div>
<p></p>
Current DataSim status is
<p></p>
<table border="1">
  <tr>
    <th width="180">Name</th>
    <th width="80">Value</th>
  </tr>
  <tr>
    <td>DataSim:Sine</td>
    <td class="highlight"><%=$DataSim:Sine%></td>
  </tr>
  <tr>
    <td>DataSim:Ramp</td>
    <td class="highlight"><%=$DataSim:Ramp%></td>
  </tr>
  <tr>
    <td>DataSim:Square</td>
    <td class="highlight"><%=$DataSim:Square%></td>
  </tr>
  <tr>
    <td>DataSim:Triangle</td>
    <td class="highlight"><%=$DataSim:Triangle%></td>
  </tr>
  <tr>
    <td>DataSim:UpdateFrequency</td>
    <td class="highlight"><%=$DataSim:UpdateFrequency%></td>
  </tr>
  <tr>
    <td>DataSim:Amplitude</td>
    <td class="highlight"><%=$DataSim:Amplitude%></td>
  </tr>
  <tr>
    <td>DataSim:Frequency</td>
    <td class="highlight"><%=$DataSim:Frequency%></td>
  </tr>
  <tr>
    <td>DataSim:Offset</td>
    <td class="highlight"><%=$DataSim:Offset%></td>
  </tr>
</table>
</body>
</html>

This file consists of HTML code interspersed with Gamma code. Gamma is the scripting language of the OPC DataHub. The Gamma code is often used to determine the value of a DataHub point, with the following syntax:

<%=$domainname:pointname%>

The pointed brackets and percent signs (<% ... %>) indicate to the DataHub ASP interpreter that this is Gamma code. The equals sign (=) tells Gamma to evaluate the expression, and the dollar sign ($) tells Gamma that this is a DataHub point.

5.8.2. An HTML Message with a Table Created in Code

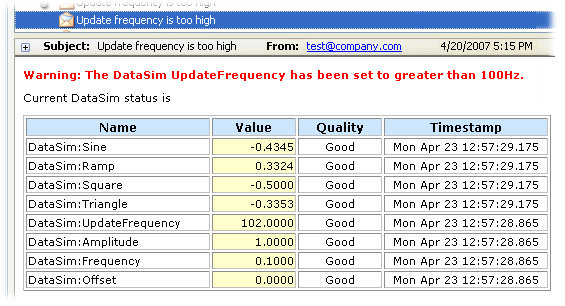

This is an example of an HTML message with a table created by using code, rather than explicitly writing it out. Using code provides more flexibility in formatting the data and making changes to the table. The code is written into an ASP file named CreateTable.asp, which comes installed with the DataHub in the OPC DataHub/etc/ directory. If the DataHub is configured to send this file as the message body, and the DataSim's UpdateFrequency is changed to, say, 102, the DataHub will email this message:

Contents of the ASP File

The contents of the file CreateTable.asp are as follows:

<html>
<style>
BODY, P, TD{
    background-color : White;
    font-family :  Verdana, Geneva, Arial, Helvetica, sans-serif;
    font-size : 8pt;
}
TH{
    font-family:Verdana, Arial, Helvetica, sans-serif;
    font-size: 9pt;
    font-weight: bold;
    background-color: #cce6fe;
}
.highlight{background-color:#FFFFCC; text-align:right}
.warning{color: #FF0000; font-weight: bold;}
</style>
<body>
<p></p>
<div class="warning">Warning: The DataSim UpdateFrequency has been set
to greater than 100Hz.</div>
<p></p>
Current DataSim status is
<p></p>
<table border="1">
    <tr>
    <th width="180">Name</th><th width="80">Value</th>
    <th width="80">Quality</th><th width="160">Timestamp</th>
    </tr>
<%
require ("Time");
require ("Quality");

try
{
    local		v, q, tm, ts, info;

    with pt in [ #$DataSim:Sine, #$DataSim:Ramp, #$DataSim:Square,
                 #$DataSim:Triangle, #$DataSim:UpdateFrequency,
                 #$DataSim:Amplitude, #$DataSim:Frequency, #$DataSim:Offset ] do
    {
        info = PointMetadata (pt);
        v = eval (pt);
        if (!number_p(v)) v = 0;
        q = GetQualityName (info.quality);
        ts = PointGetUnixTime (pt);
        tm = format ("%19.19s.%03d", date(ts), (ts % 1.0) * 1000);
%>
        <tr><td><%= pt %></td>
            <td class="highlight"><%= format("%.4f",v) %></td>
            <td align="center"><%= q %></td>
            <td align="center"><%= tm %></td></tr>
<%
    }
}
catch
{
    princ (_last_error_, "\n");
    print_stack (nil, _error_stack_);
}
%>
</table>
</body>
</html>

This file consists of HTML code interspersed with Gamma code. Gamma is the scripting language of the OPC DataHub. The Gamma code is often used to determine the value of a DataHub point, with the following syntax:

<%=$domainname:pointname%>
