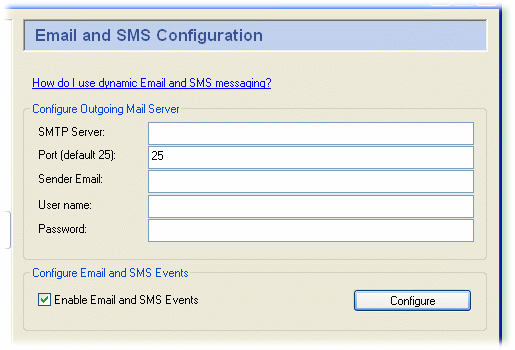

 | This option in the Properties Window sets up the DataHub to send emails and SMS text messages. You will need to configure the outgoing mail server at least once, and then configure each email message. |

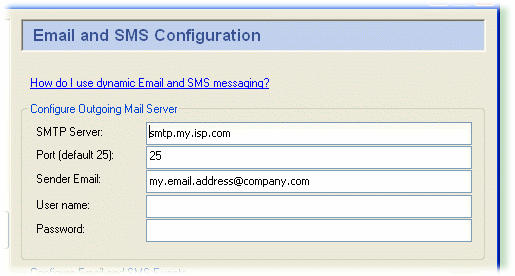

by pressing the button to open the Mail Server Configuration window:
The name of the SMTP server. You can use the same SMTP server listed in your email client program.
The SMTP port number (typically this is port 25).
The email address of the sender. This will appear in the From field of the email.
The log-in name you use to access this SMTP account.
The applicable password.
Click the button to submit your entries.

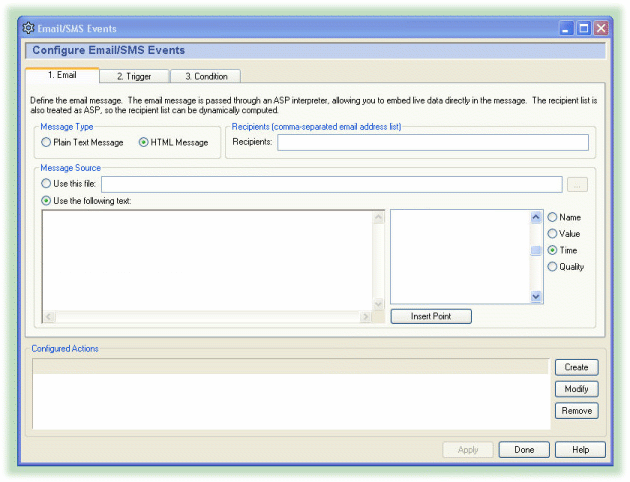

To press the button to open the Email/SMS Events window:
A complete explanation for this window can be found in Chapter 5, OPC to Email and SMS, starting with the Sending a Test Message.
| |  | |
